Fashion Production Drawing: Womens Puffer Vest

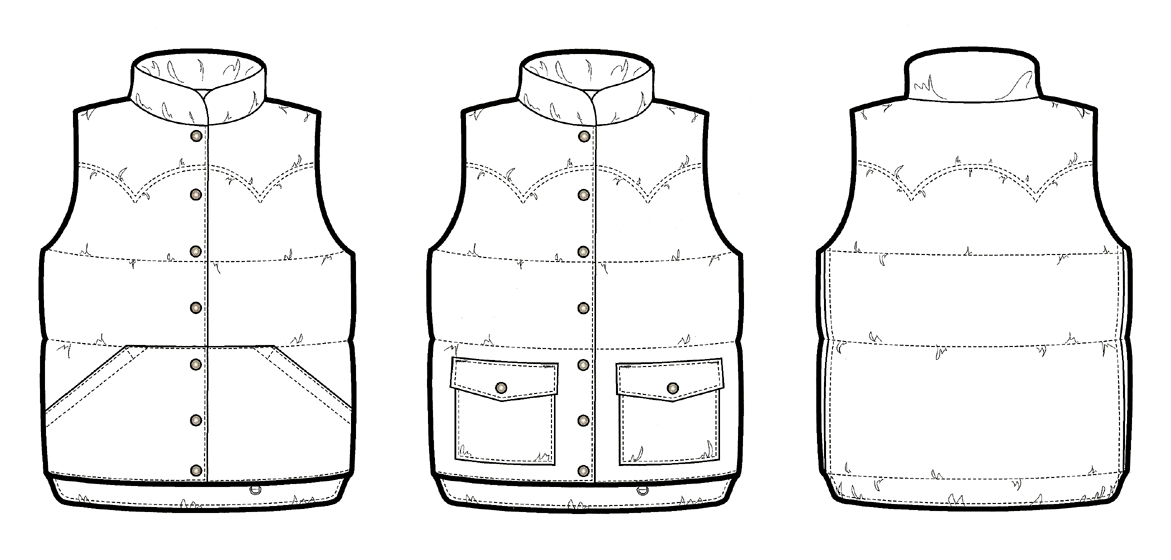

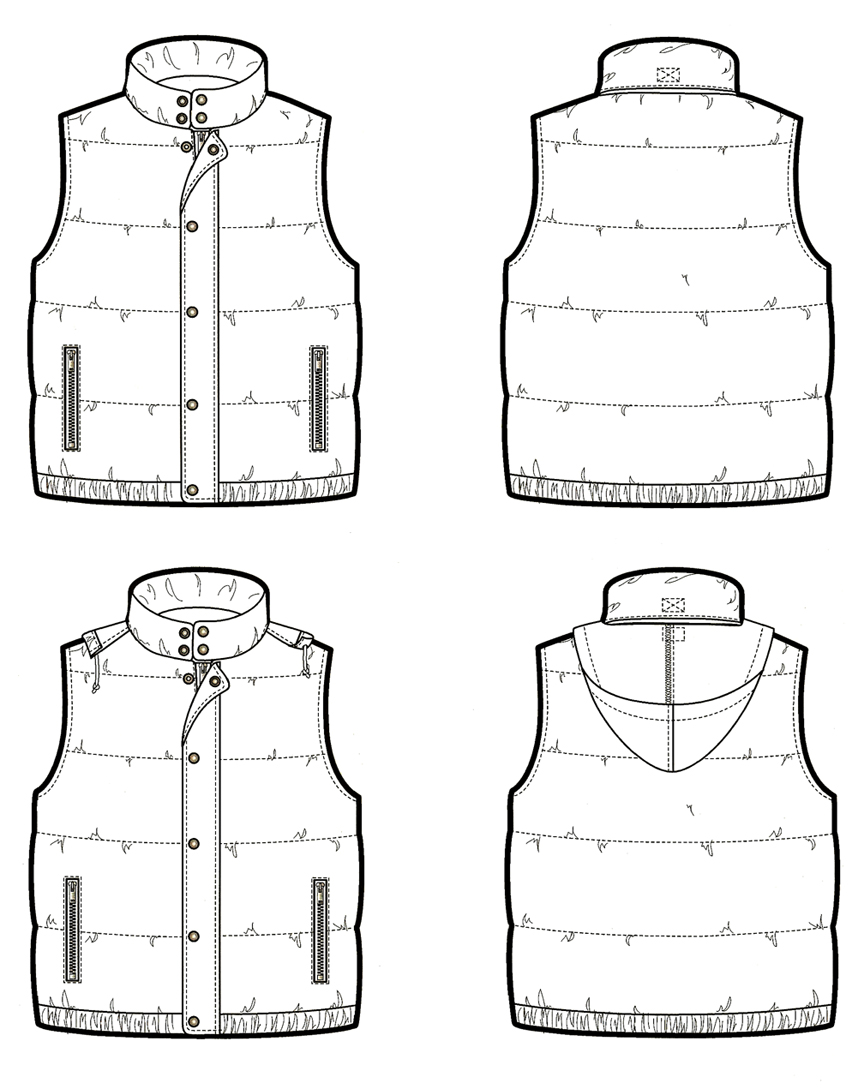

Following direction from the designer and several physically produced samples, I drew this puffer vest form in Illustrator showing all stitch lines, seams, pockets and closures. I also created a version showing the hood unfurled from a Velcro collar compartment. The designer provided physical samples of various pockets, and I created various drawings showing these pocket options along with a western stitching option. All final image versions were then entered into a packet program along with all the measurements and other relevant information needed to produce this piece of clothing, and the packet was sent to the overseas production factory for physical sampling.

(7 representative images below)
