Fashion Production Drawing: Womens Blazers

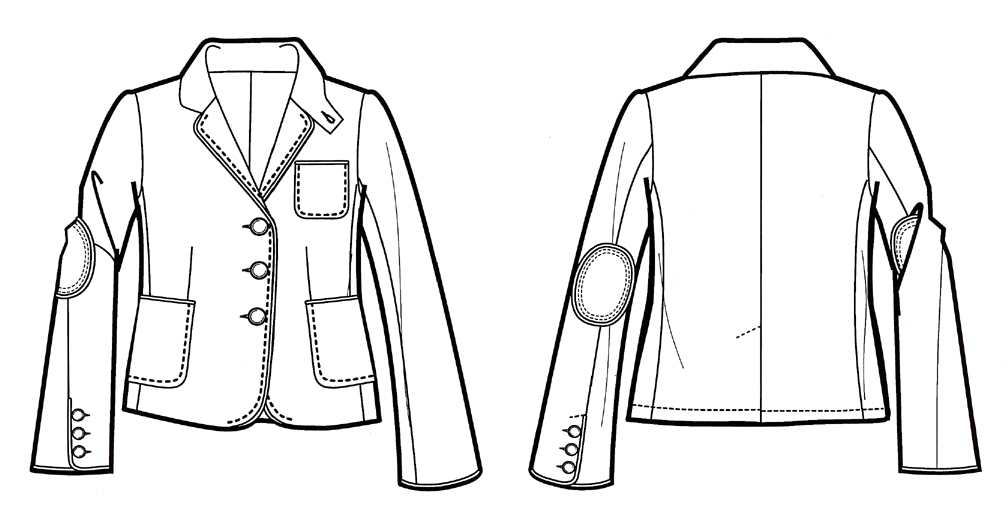

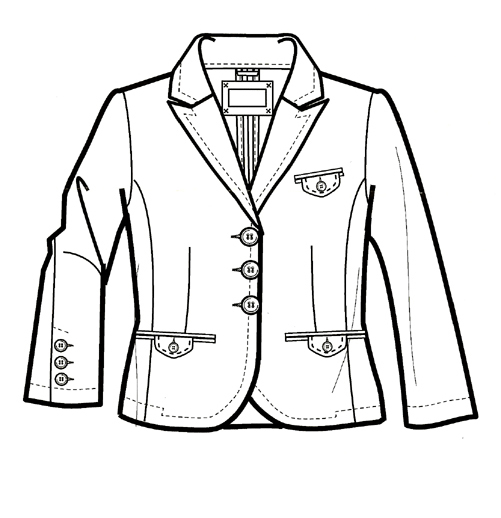

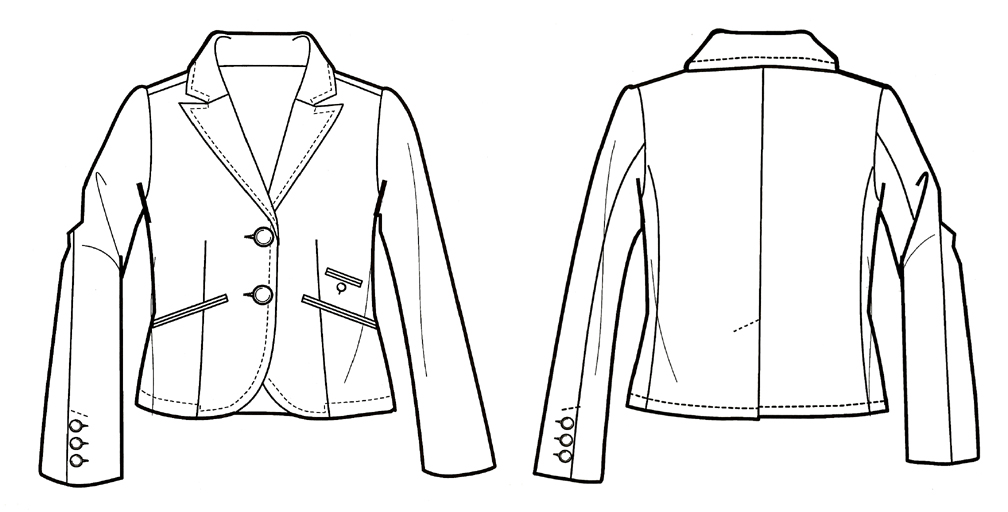

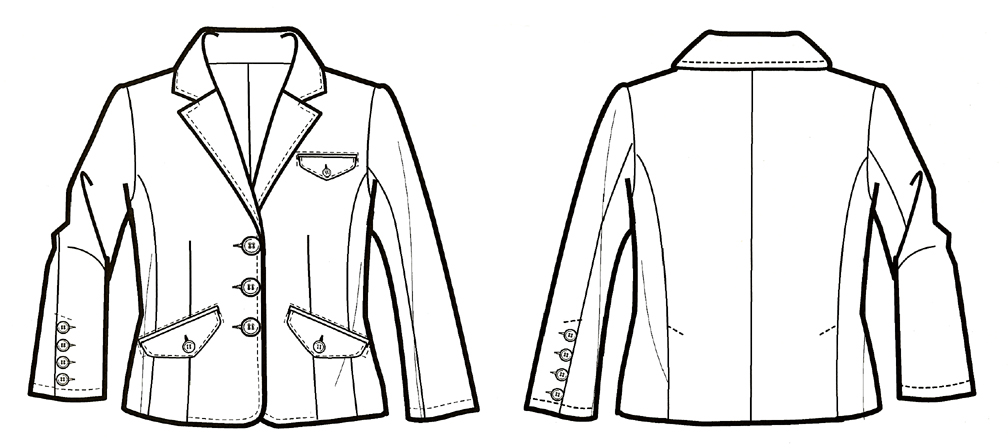

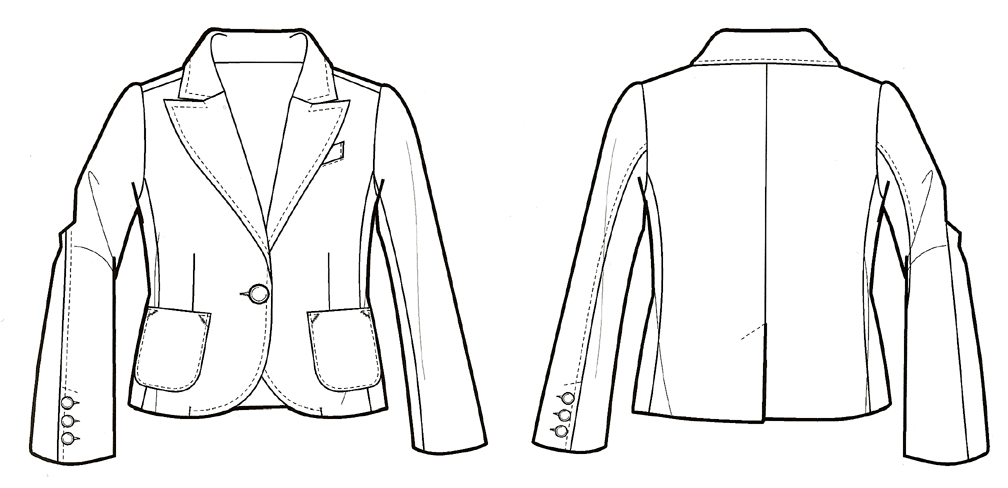

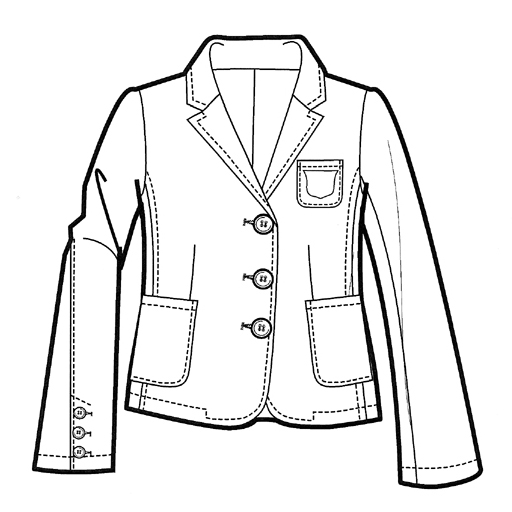

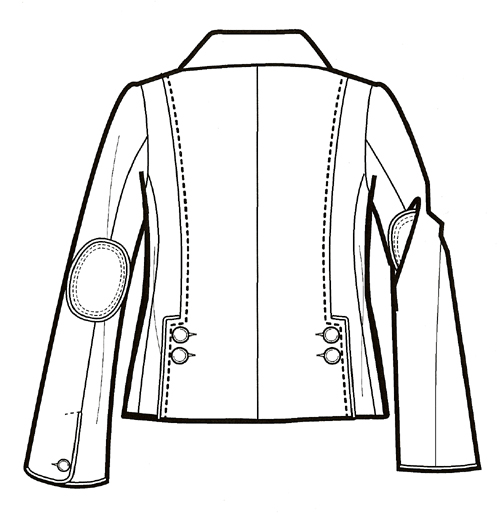

Following direction from the designer and an assortment of physically produced samples, I drew these blazer forms in Illustrator showing all stitch lines, seams, pockets and closures. I then created color versions using body colors from a swatch palette provided by the designer. I added these images to a linesheet along with general production details about each garment for internal presentation. Final image versions were then entered into a packet program along with all the measurements and other relevant information needed to produce each piece of clothing, and each packet was sent to the overseas production factory for physical sampling.

(11 representative images below)
