Fashion Production Drawing: Womens Blazer with Patches

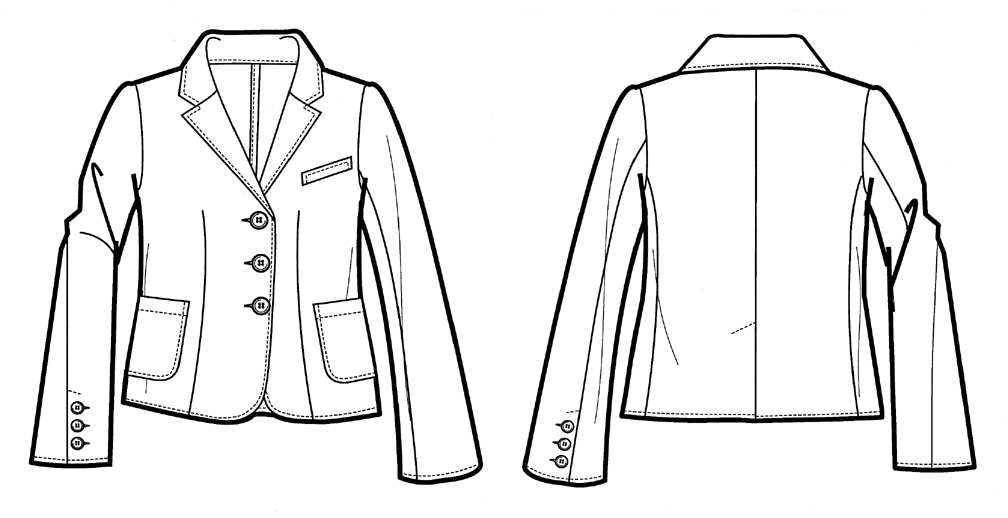

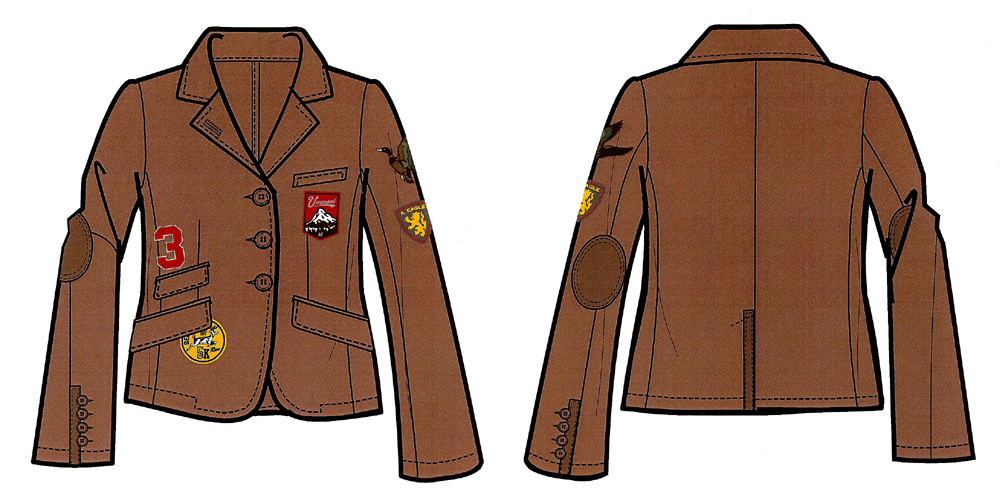

Following direction from the designer and several physically produced samples, I drew this blazer form in Illustrator showing all stitch lines, seams, pockets and closures. I created a final version with a body color and applied patches which were provided by the detail design team, then I added that final image to a linesheet along with general production details about the garment for internal presentation. Both image versions were then entered into a packet program along with all the measurements and other relevant information needed to produce this piece of clothing, and that packet was sent to the overseas production factory for physical sampling.

(4 representative images below)
