Fashion Production Drawing: Mens Military-Style Field Jacket

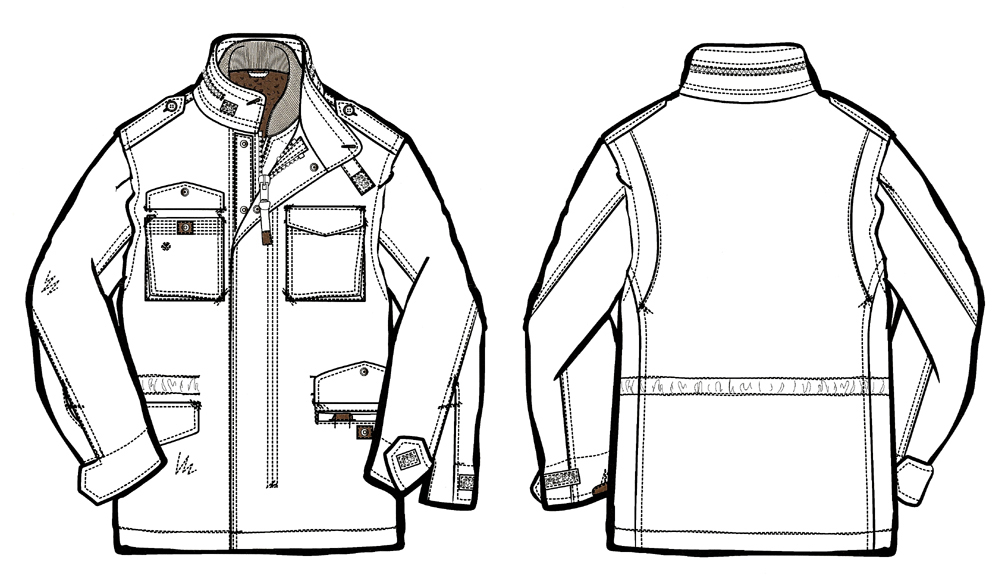

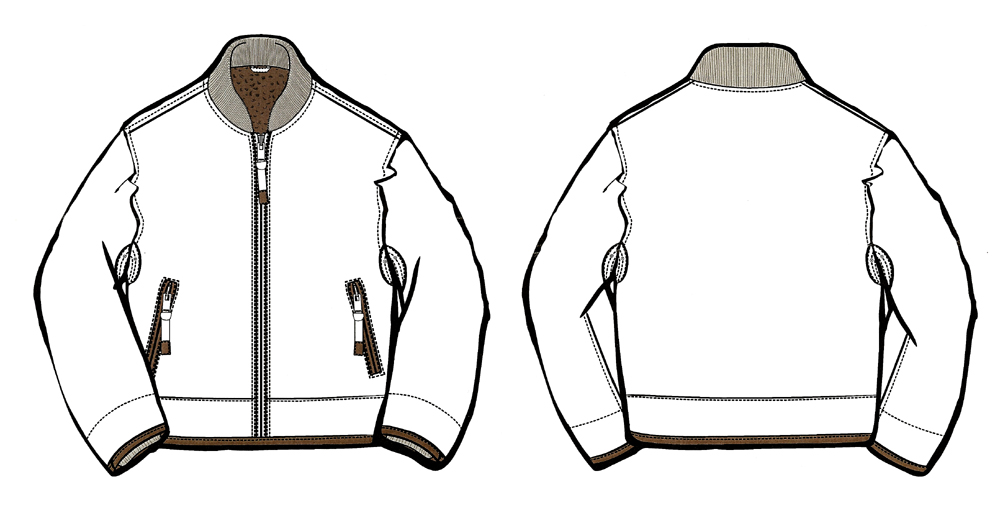

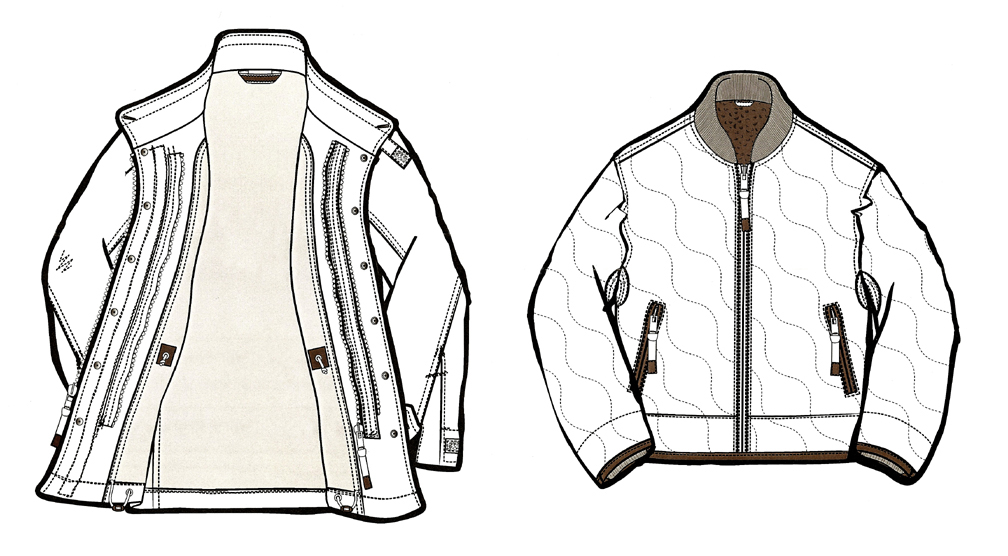

Following direction from the designer and several physically produced samples, I drew this military-style field jacket form in Illustrator showing all stitch lines, seams, pockets and closures. I drew several versions showing the outer jacket with and without the internal jacket layer, showing inside pocket and pull-string details, and versions of the inner jacket by itself, showing lining and border details. Then I created versions with body colors from a swatch palette added those versions to a linesheet along with general production details about the garment for internal presentation. Final image versions were then entered into a packet program along with all the measurements and other relevant information needed to produce this piece of clothing, and the packet was sent to the overseas production factory for physical sampling.

(6 representative images below)
