Fashion Production Drawing: Stitch-Based Lining Patterns

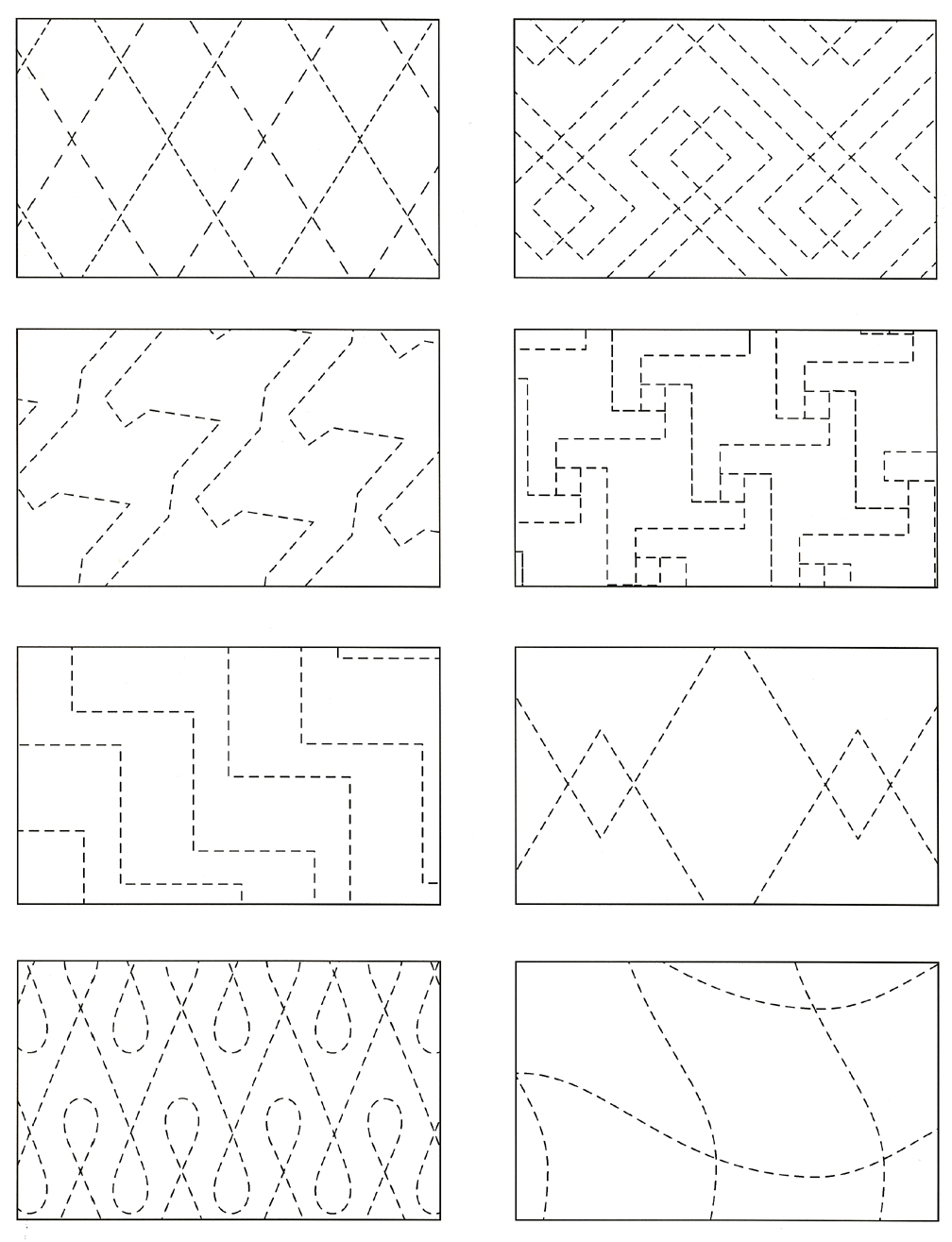

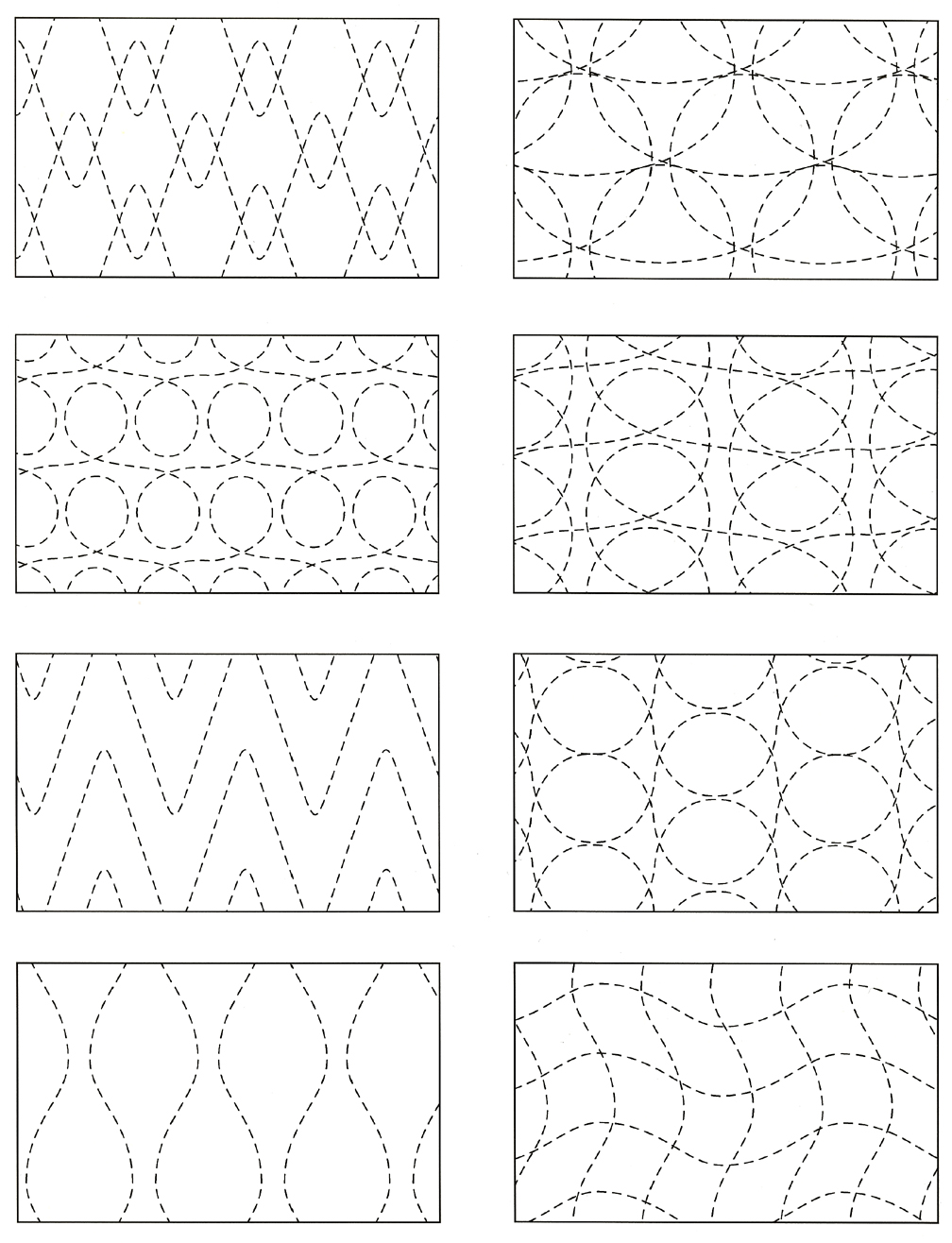

These are some examples of stitch-based padded lining patterns that I created in Illustrator. Approved lining versions were then entered into a packet program along with all the measurements and other relevant information needed to produce each lining, and the packet was sent to the overseas production factory for physical sampling.

(16 representative images below)
